1. WINDOWS operating system - Using computer control, fault sound and light alarm and menu display
2. CCD visual positioning system
3. Adopt linear motor + motion control card
4. Modular design - can be combined as required, including single platform, double platform, conveying system, glue path detection system.
5. Automatic thermostatic system of valve - ensure consistent fluidity of paint
6. Optional laser height detection system - the Z axis height can be automatically calibrated after the workpiece is deformed
7. Optional precision weighing system - intelligent control and detection of dispensing volume, to ensure the consistency of dispensing

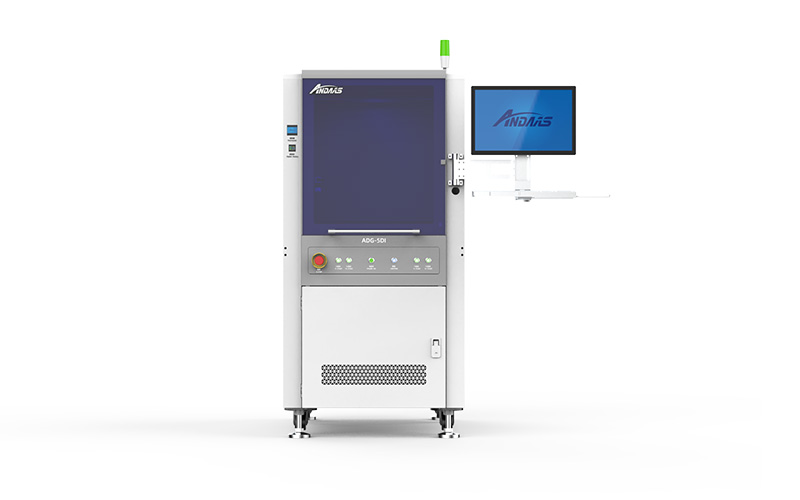

Specifications | ADG-5DI |
Dimension (mm) | L1166 * W1200 * H1600 |
Control | Industrial personal computer + motion control card |
Dispensing working area (mm) | X1=200; X2=200; Y=200 |
Number of principle axis | 5 axes |
Drive mode | Linear motor (X、Y、A、U) / Servo motor(Z) |
Conveyor mode | ESD belt |
Amplitude modulation mode | Electric, 50-200mm |
Conveyor speed | Stepping motor, 2-5m/min |
Maximum Moving speed (mm/s) | 1000 |
Repeatability (mm) | ±0.012 |
Coating capacity (CC) | 30/50 |
Communication protocol | SMEMA |
Programming | The mounter files can be imported; Online visual programming |
Input power | 220V 50/60Hz |
Required air (Mpa) | ≥ 0.65 |
Rated power (kw) | 3 |
Weight (kg) | 500 |
Equipment alarm | Menu + Sound and light alarm |
Safety standards | CE |
Glue valve selection | Pneumatic injection valve, piezoelectric valve, screw valve can be used |
Options of extended function | Booster pump; UPS; Voltage Regulator; Barcode scanner Microbalance (0.1mg); Laser altimetry (SICK) |
