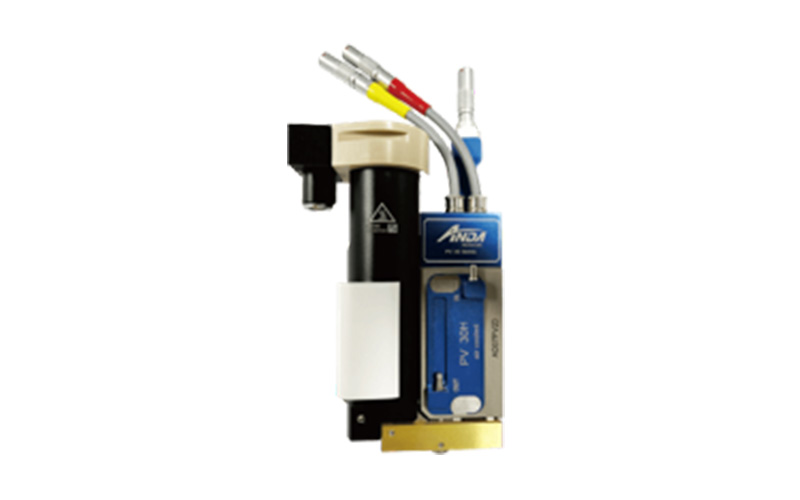

PV-30H Hot Melt Valve

Product features:

• Precise dispensing at the 0.01 milligram level;

• Maximum operating frequency reaches up to  1000Hz, with dispensing line widths as fine as  0.3mm;

• Built-in heating allows for free temperature  setting of the flow path and material feed  between 0-200℃, ensuring that the glue's  viscosity is not affected by temperature;

• Long service life of piezoelectric ceramics, up  to 600 million cycles;

• Capable of dispensing adhesive through  narrow spaces as small as hundreds of microns,  making it versatile and suitable for various  products;

• Equipped with various adhesive cartridges,  customizable based on customer requirements,  signific

Product advantage:

technical specifications:
SpecificationsPV-30H
ModelHot melt valve
Dimensions(mm)60 mm × 100 mm × 169 mm
Weight(g)390
Maximum operating frequency(Hz/s)1000
Feed pressure(Mpa)0~0.3
Minimum point diameter(mm)0.3
Drive wayPiezo drive
Heat module(°C)0-200
