| Specifications | ZS-02 |

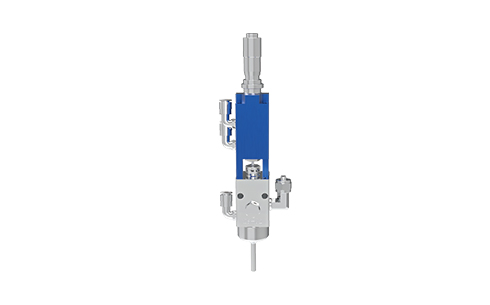

| Model | Needle Atomization Valve |
| Dimensions(mm) | 202 * 60 * 30 |
| Weight(g) | 270 |
| Minimum driving air pressure(Mpa) | 0.4 |
| Maximum fluid pressure(Mpa) | 0.7 |
| Working frequency(times/minute) | ≥400 times/minute |
| A fixed way | 2-M4 screw fixation |
| Drive air inlet | 4mm outer diameter trachea |
| Cylinder valve | Alloy, metal |
| Wetted parts | Stainless steel |
| Maximum viscosity range(mPas) | 30~3500 |
