Standard Features
1. Computer control with Windows OS
2. CCD visual positioning system
3. Servo motor with ball screw
4. Inline CCD visual programming or gerber upload
5. UPS and voltage stabilizer
6. ESD grounding point
7. CE certified
1. Heated valves for viscosity control
2. 35 degree tilt and 360 degree rotation
3. PCB heater enhances material flow for underfill applications
4. Precision weight measurement ensures accurate volumetric dispensing
5. Multiple valves available: Pneumatic jet valve, Slide valve and Screw valve
6. Laser height detection to calibrate Z axis automatically for component deformation
1.Cost-effective with high-performance.
2.Non-contact injection valve to achieve a smaller dispensing diameter and a wider application field.
3.The injection valve improves the reliability and consistency of dispensing, also increases productivity and material utilization
4.The minimum overflow width of Underfill is only 0.2mm (related to configuration and glue)
5.Recognize the chip body, which is more accurate than Mark point recognition and positioning
6.Identity recognition, automatic program call, foolproof, data statistics and other functions to realize intelligent manufacturing

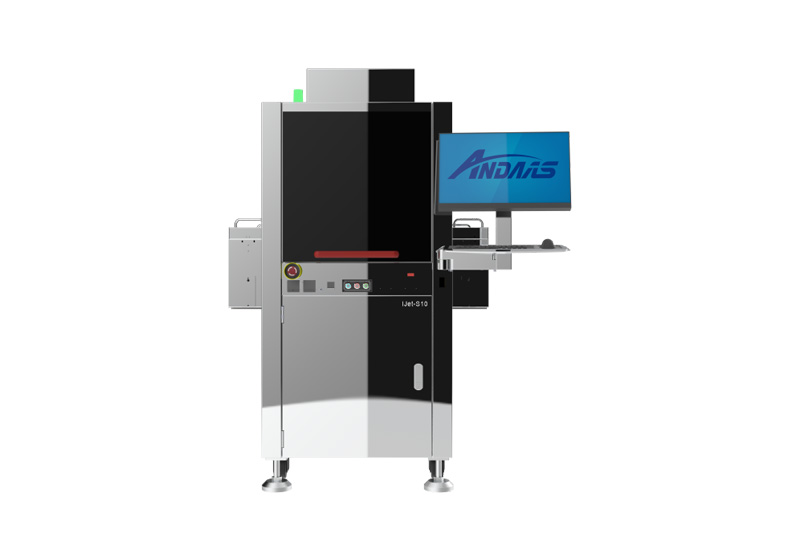

Specifications | iJet-10 Dispensing Machine |
Dimension（mm） | L761×W1350×H1560 |
Dispensing Area（mm） | X: 320 Y: 400 Z: 30 |
Repeatability (mm) | ±0.005 |
Maximum moving speed (mm/s) | 1300 |
Maximum acceleration (g) | 1.3 |
Standard configuration | Three axes motion platform; Visual recognition system; Vacuum cleaning device; Laser altimeter; Low liquid level detection device; Sound and light alarm device; Single conveyor module |
Optional configuration | Piezoelectric injection module; Weighting module; Lane tooling heating module; Automatic loading and unloading module; Dual-valve module; Rotating R-axis module; 3D dispensing module |
