Computer Control, Windows OS
CCD visual positioning system
Servo Motor
UPS and voltage stabilizer
ESD grounding point-
CE certifed
Automatic constant temperature system to ensure the fuidity consistent
Laser Height Detection to calibrate Z axis automatically for component
deformation

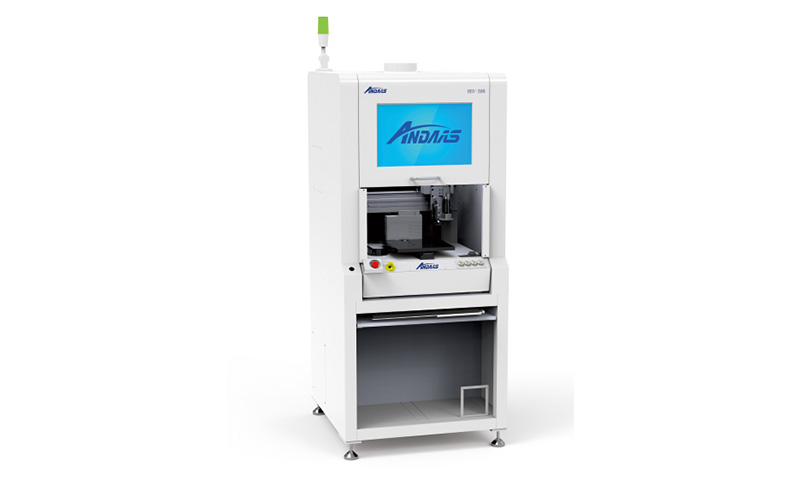

TSV Series desktop dispensing system is applicable for LENS dispensing, FPC package, SMT red glue dispensing, solder past dispensing, LED package, fingerprint identifcation module, etc.
Specifications | TSV-300 | HSV-300 |
Dimension (mm) | L810×W660×H760 | L900×W650×H1460 |
Weight (kg) | 105 | 190 |
Control | Industrial personal computer + motion control card | |
Software | Anda control software + windows system | |
Programming | Visual programming | |
Number of spindles | X、Y、Z | |
Spindle drive | Servo motor + module | |
Working area (mm) | X:260 ; Y:260 ; Z:100 | |
Quantity of rubber valve | 1 (standard configuration) | |
Max. Moving speed (mm/s) | 800 | |
Repeatability (mm) | ± 0.025 | |
Coating capacity (cc) | 30 | |
Valve nozzle cleaning device | Vacuum cleaning | |
Equipment alarm | Menu + sound and light alarm | |
Coating inspection | Automatic detection | |
Power supply | 220V 50/60Hz | |
Required air pressure (Mpa) | ≥ 0.65 | |
Safety standards | CE | |
Rated power (kw) | 1 | |
Standard configuration | CCD visual positioning; Electrostatic interface; 232 scanner socket | |
