Product Features
Laser SLAM navigation + QR code navigation
Precise positioning and automatic loading/unloading.
Compatibility with mainstream board collection and delivery machines: Lower shelf docking height range: 220–390 mm; Upper shelf docking height range: 935–1100 mm (flexible height connection)
Maintenance-free lithium battery with intelligent power management and autonomous charging.
Travel Functions: Forward, backward, left turn, right turn, and in-place rotation.
Repeatability: ±10 mm (SLAM navigation), ±2 mm (QR code positioning).
Ease of Use: Operates automatically according to scheduling commands without manual intervention.
Expansion Compatibility: Customizable as required and compatible with WMS and MES systems.
Multiple safety protections: Laser obstacle avoidance sensors, collision protection with bumper strips around all sides, and front and rear EMO buttons
Automatic calibration via optical communication;
Low Battery Warning: Supports automatic charging upon low battery and idle-state auto charging.

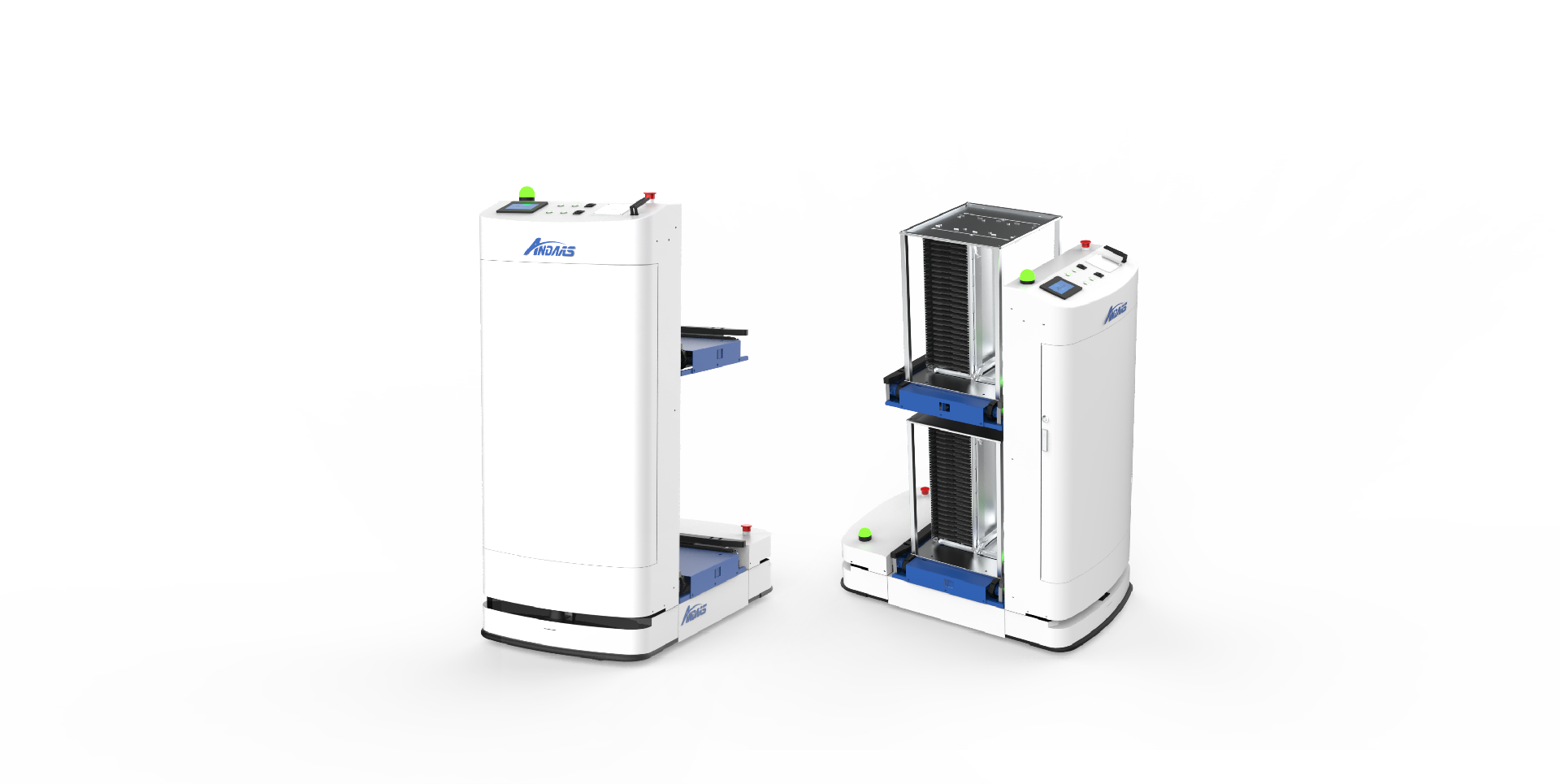

The double-layer lifting transfer robot is used for the automated delivery and loading/unloading of board carriers in 3C electronics SMT workshop production lines, including the board collection and board delivery machines. Double-layer independent lifting mechanism provides greater flexibility and higher compatibility when docking with board collection and delivery machines. Integration with WMS, MES, and ERP systems enables intelligent scheduling based on production plans, realizing intelligent monitoring of material data during the production process.
Model | AD-DL50 | |
Basic Specifications | Overall Dimensions (L × W × H) (mm) | 1100x600x1350 (Customizable) |
Net Weight (kg | <250 | |
Safety Device | EMO button, safety touch edges, laser radar, audible and visual alarms, depth camer | |
Rated Load (kg) | 50 (Customizable) | |
Navigation Metho | Laser SLAM navigation + QR code navigation | |
Motion Performance | Max. Motion Speed (m/s | 1 |
Repeatability (mm | ±10 (SLAM navigation), ±2 (QR code positioning) | |
Travel Direction | Forward/backward/rotation in place | |
Battery Performance | Rated Voltage (V | 48 |
Battery Capacity (Ah) | 30 | |
Charging Cycle | Full charge/discharge cycle ≥150 | |
Endurance (Typical Condition) (H) | ≥8 | |
Charging Time (H | Charge time after full discharge ≤2 hours | |
Charging Method | Automatic/manua | |
Docking Range | Lower shelf docking height range (mm | 220~390 |
Upper shelf docking height range (mm) | 935~1100 | |
Lifting speed (m/s) | ≥0.05 | |
Operating Environment | Temperature & Humidity | Temperature: 0-50°C, Humidity: 10%-70% |
| Slope | Slope: ≤3 | |
Floor flatness (mm/m² | ≤10 | |
Others | Communication Method | WIFI |
Reserved docking interface | USB/RJ45 ports | |
