Laser SLAM navigation + QR code navigation
Precise positioning and automatic loading/unloading.
Docking height range: ≥380–530 mm
Maintenance-free lithium battery with intelligent power management and autonomous charging
Autonomous navigation with obstacle avoidance
Travel Functions: Forward, backward, left turn, right turn, and in-place rotation.
Repeatability: ±10 mm (SLAM navigation), ±2 mm (QR code positioning).
Multi-unit linkage: Supports multi-AMR linkage functionality (optional).
Ease of Use: Operates automatically according to scheduling commands without manual intervention.
Expansion Compatibility: Customizable as required and compatible with WMS and MES systems.
Multiple Safety Protections: Equipped with laser obstacle avoidance sensors, perimeter bumpers, and front/rear EMO buttons.
Automatic calibration via optical communication for docking.
Low Battery Warning: Supports automatic charging upon low battery and idle-state auto charging.

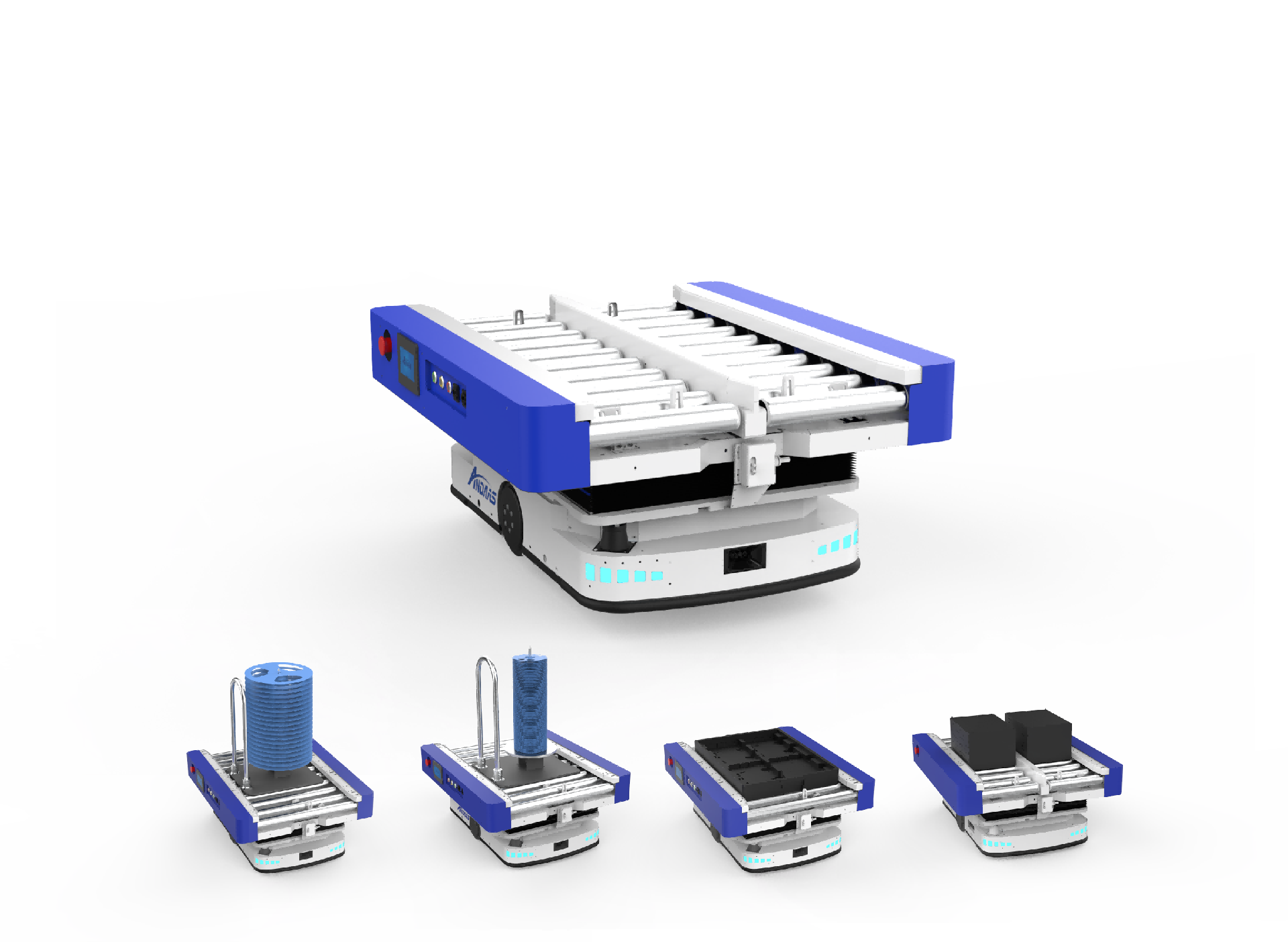

The roller lifting robot completes material transportation and delivery by connecting rollers with station materials. The lifting mechanism adjusts the roller surface height, enabling docking with workstations at various heights. It is mainly used for automatic material handling and loading/unloading between multiple workstations, effectively reducing labor intensity and lowering human resource costs. The machine is equipped with self-developed control system, which can be integrated with WMS, MES, ERP systems. The roller lifting robot supports unmanned material transport and intelligent scheduling based on the production plan, providing intelligent monitoring of material data throughout the process.
Technical Parameter | ||
Model | AD-DL200 | |
Basic Specifications | Overall Dimensions (L × W × H) (mm | 962x860x1030 (Customizable) |
Net Weight (kg) | <250 | |
Safety Devic | EMO, safety touch edges, laser radar, audible and visual alarms, depth camer | |
Rated Load (kg) | 200 (Customizable) | |
Lifting stroke (mm) | 150 | |
Navigation Method | Laser SLAM navigation + QR code navigatio | |
Motion Performance | Max. Motion Speed (m/s) | 1.0 |
Repeatability (mm) | ±10 (SLAM navigation), ±2 (QR code positioning) | |
Turning Radius (mm) | 1250 | |
Travel Directio | Forward/backward/rotation in place | |
Battery Performance | Rated Voltage (V) | 48 |
Battery Capacity (Ah) | 30 | |
Charging Cycle | Full charge/discharge cycle: 1500 time | |
Endurance (Typical Condition) (H) | ≥8 | |
Charging Time (H) | Charge time after full discharge ≤2 hours | |
Charging Method | Automatic/manual | |
| 使用环境 | Temperature & Humidity | Temperature: 0-50°C, Humidity: 10%-70% |
Slope | Slope: ≤3% | |
Ground Flatness (mm/m²) | ≤10 | |
Others | Communication Metho | WIFI |
External Interface | USB/RJ45 ports | |
