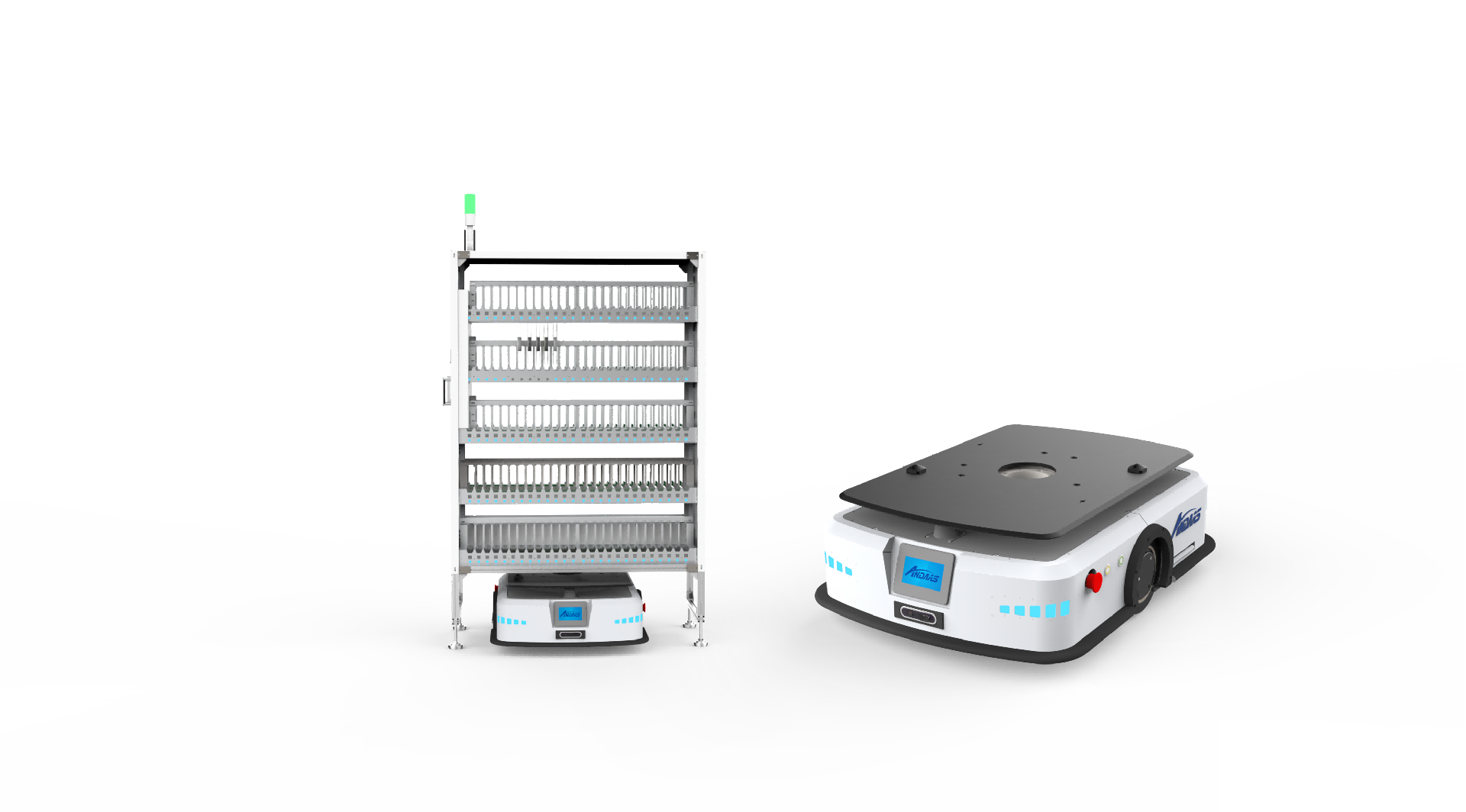

The machine is able to perform rack transportation automatically, drives underneath and lifts a material rack with the onboard elevating mechanism. This significantly reduces manual labor intensity and lowers human resource costs. The machine is equipped with self-developed control system, which can be integrated with WMS, MES, ERP systems. The underride lifting robot enables unmanned material handling during production, achieving intelligent scheduling based on production plans and intelligent monitoring of material data throughout the manufacturing process.
Model | AD-L300 | |
Basic Specifications | Overall Dimensions (L × W × H) (mm | 880x640x270 (Customizable) |
Net Weight (kg) | <150 | |
Safety Device | EMO button, safety touch edges, laser radar, audible and visual alarms, depth camer | |
Rated Load (kg | 300 (Customizable) | |
Lifting Height (mm) | 60 | |
Motion Performance | Navigation Method | Laser SLAM navigation + QR code navigation |
Max. Motion Speed (m/s | 1.5 | |
Repeatability (mm) | ±10 (SLAM navigation), ±2 (QR code positioning) | |
Turning Radius (mm | 980 | |
Battery Performance | Travel Direction | Forward/backward/rotation in place |
Rated Voltage (V) | 48 | |
Battery Capacity (Ah) | 30 | |
Charging Cycle | Full charge and discharge cycles: 1500 | |
Endurance (Typical Condition) (H) | ≥8 | |
Charging Time (H) | Charge time after full discharge ≤2 hour | |
Charging Method | Automatic/manual | |
Operating Environment | Temperature & Humidit | Temperature: 0-50°C, Humidity: 10%-70 |
Slope | ≤10 | |
Ground Flatness (mm/㎡) | Slope: ≤5% | |
Others | Communication Metho | WIFI |
External Interface | USB/RJ45 ports | |
