The system operates on a first-in, first-out basis, prioritizing remaining stock for precise material management.
It is compatible with four tray sizes: 7-inch, 11-inch, 13-inch, and 15-inch.
It provides high-density, dual-depth storage.
QR code and visual contour recognition ensure error-proof, highly accurate operation.
Each material has a unique code, enabling full traceability.
Intelligent, efficient operation reduces human errors.
The storage layout is visualized, with bin location status displayed in real time.
Full aluminum alloy storage bin;
Antistatic rating ≥ E5;
Modular design: enables quick assembly, flexible relocation, adjustable storage zones, dual-arm fork for efficient storage;
Enable to integrate with AMR (Autonomous Mobile Robot) and material-feeding robots to achieve autonomous traffic dispatching and precise delivering material to production lines, reducing manual intervention
High compatibility (supports 7-inch, 11-inch, 13-inch, and 15-inch electronic reels, material bins, and trays)
Dual-arm fork for high-efficiency storage
High system integration (WCS – Warehouse Control System, WMS – Warehouse Management System, RCS – Robot Control System)

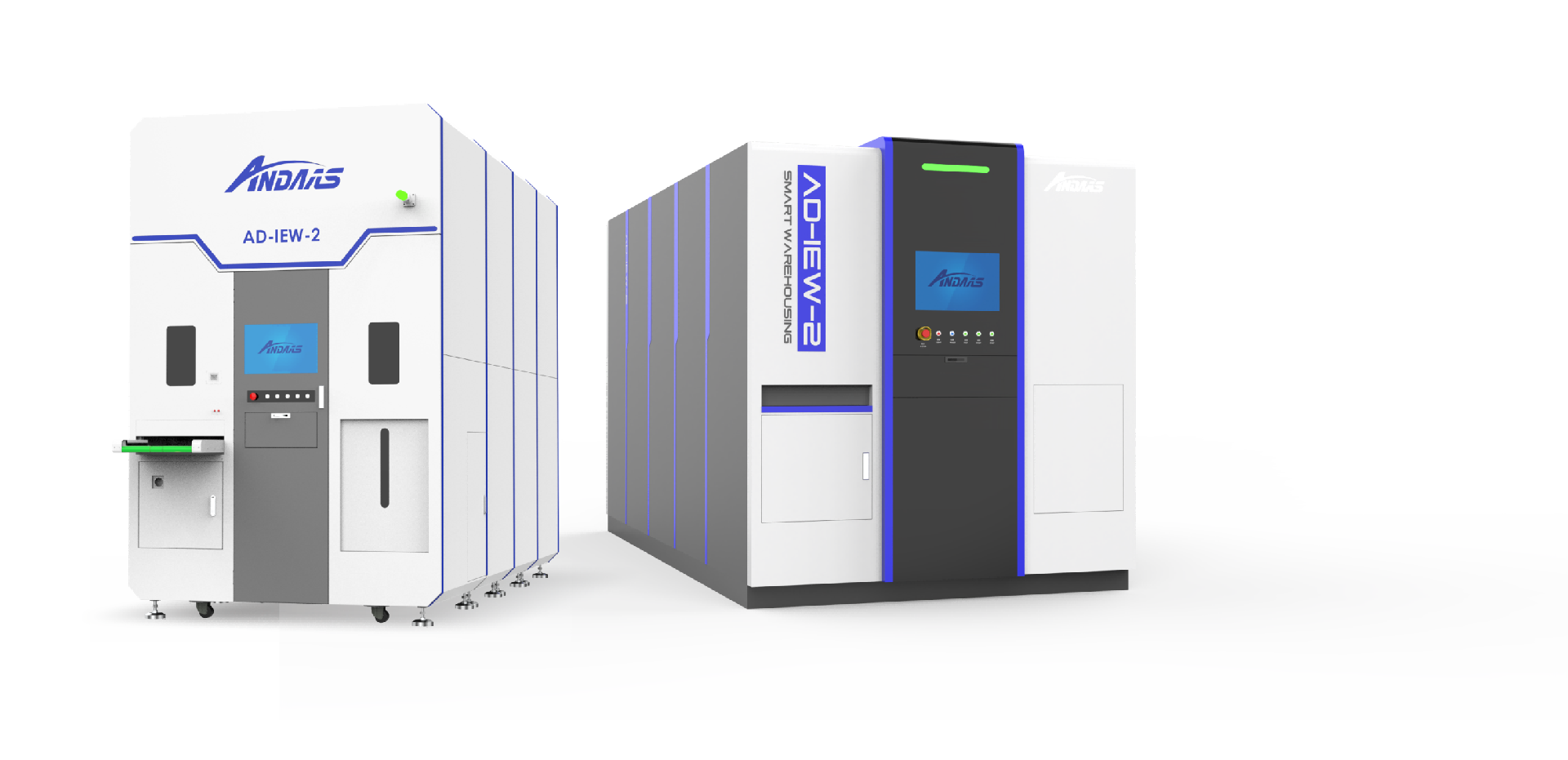

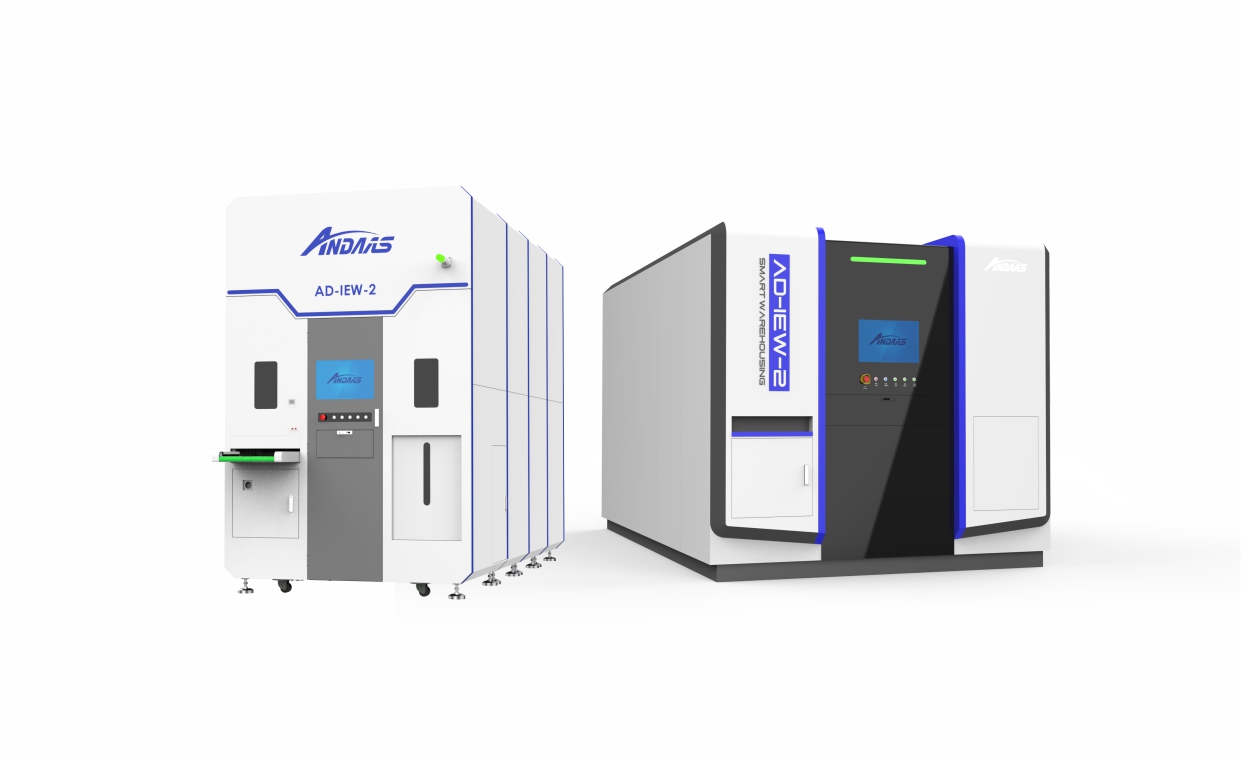

It's designed for the automated storage and batching (tray loading) of various electronic components in the SMT industry. The SMT Intelligent Electronic Warehouse enables intelligent, unmanned operation and manages the entire material flow process, including storage, picking, allocation, retrieval, and dispatch. It provides precise electronic material management following the principle of "one item, one code, one location". Integrating with ERP, MES, and RCS systems, the machine enables accurate batching and distributing of SMT work order materials based on workstation location.
Technical Parameters： | |
Mode | AD-IEW-2 |
Overall Dimensions (L × W × H) (mm) | 5000 × 1900 × 3000 (customizable) |
Gross Weight (kg) | Approx. 3000 (excluding trays) |
Footprint (m²) | 9.5 |
Required Floor Load Capacity (kg/m² | 395 |
Throughput Efficiency (pcs/h) | 400 |
Electrical Parameters | Rated voltage: AC 220 V; Max. power: 2000 W (max) |
Vision System | QR code recognition, material contour recognitio |
Environmental Monitoring | Temperature and humidity detection module |
Safety Configuratio | EMO Button, safety door/window sensors |
ESD Protection | Anti-static inbound/outbound belt, whole machine grounding, interconnected grounding between internal shelve |
Tray Specifications | Compatible with 7-inch, 11-inch, 13-inch, and 15-inch trays |
Max. Storage Capacity (trays) | 3200 (all 7-inch reels |
Max. Operating Speed (m/s | Horizontal 1.1 Vertical 1.1 Fork extension 0.7 |
Fork Extension Stroke (mm) | 0~420 |
Fork Rotation Angle (° | ±90 |
Repeatability (mm) | ±5 |
Pick-and-Place Method | Clamping type, single stacker crane, dual grippers, bidirectional rotation and extensio |
Optional Modules | UPS module, temperature and humidity module, dust cleaning module |
System Interfac | Self-developed WMS/WCS system; supports deep integration with MES, ERP, and RCS system |
Others | Supports physical docking with AMR systems |
