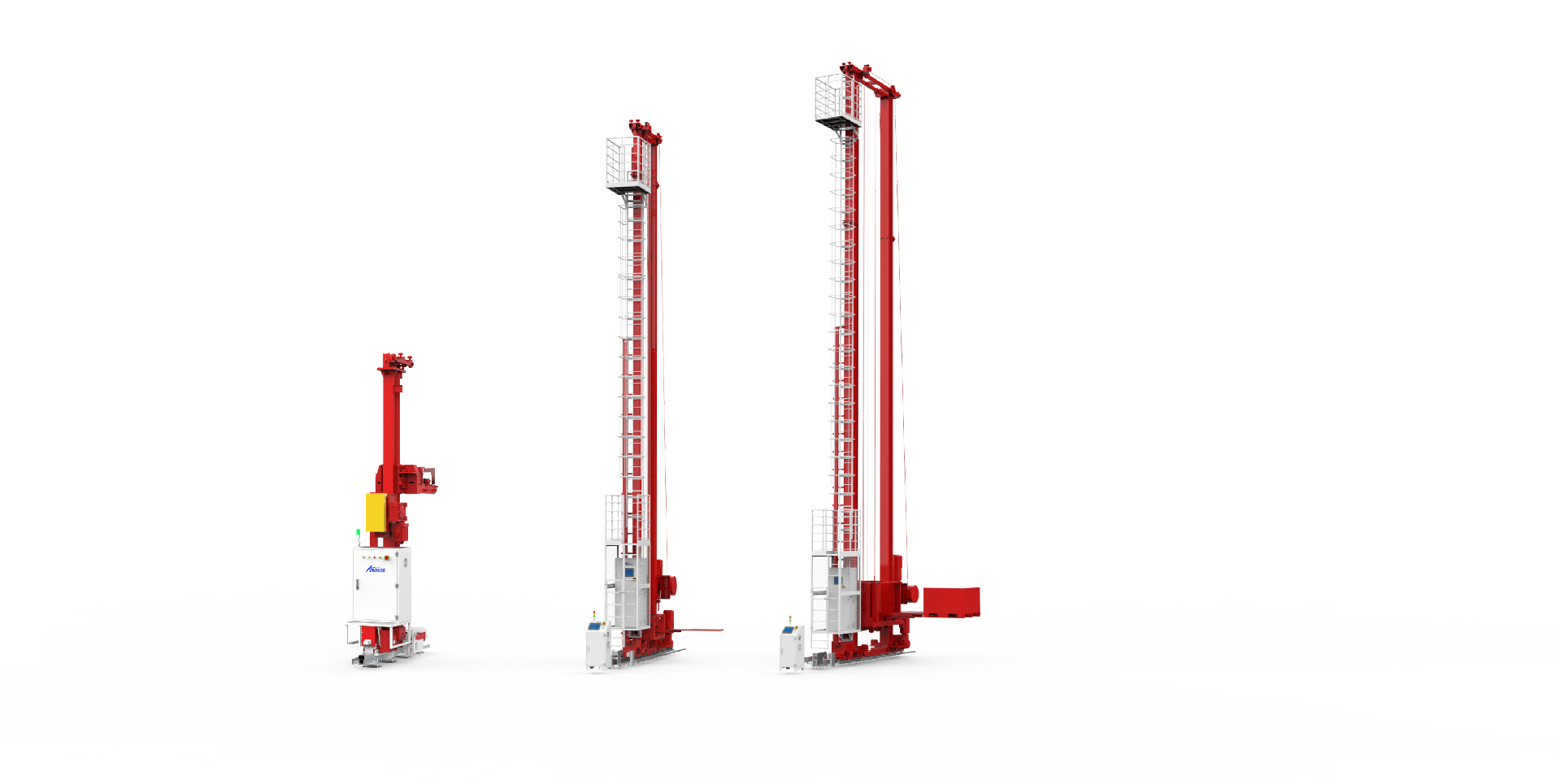

Stacker Crane

Product features:
  • Flexible Inbound and Outbound: Supports both manual and automatic material input and output operations.

  • Repeatability: ±5 mm.

  • Ease of Use: Automatically operates according to scheduling commands without manual intervention, with automated location selection for storage and retrieval.

  • Self-Diagnosis: Equipped with fault self-check and automatic fault recovery functions.

  • Multiple Safety Protections: Includes front/rear obstacle avoidance, EMO buttons, and warning light indicators for enhanced safety.

  • Weight Detection: Performs weight detection for all inbound bins to prevent equipment failures caused by overloads.

  • Height and Width Detection: Detects excessive height of inbound bins to prevent faults or material damage caused by oversized items entering storage.

  • Lightweight Design: The cargo platform adopts a lightweight structure, reducing both bottom and top clearance heights and achieving faster lifting speeds.

  • Modular Design: The system adopts a modular structure with enclosed electrical control, enabling rapid design, manufacturing, and parameterized debugging.

  • Motor Braking: The lifting motor is equipped with a braking function to ensure operational safety.

Product advantage:

Flexible Inbound and Outbound: Supports both manual and automatic material input and output operations.


technical specifications:

Model

50 kg Single-Column Stacker Crane

100 kg Double-Column Stacker Crane

100 kg Double-Column Stacker Crane

Load Capacity (kg)

50

100

1000

Stacker Height (m)

4.3

13.3

16.8

Column Structure

Single Column

Double-Column Structure

Double-Column Structure

Motion Path

Straight Rail

Straight Rail

Straight Rail

Motion Speed (m/min)

Horizontal Travel Speed: 0–160 m/min

Vertical Lifting; Speed: 0–60 m/min

Fork; Extension/Retraction Speed: 30–40 m/min;

Horizontal Travel Speed: 0–160 m/min;Vertical Lifting Speed: 0–40 m/min;

Fork Extension/Retraction Speed: 30–40 m/min;

Horizontal Travel Speed: 0–120 m/min;

Vertical Lifting Speed: 0–40 m/min;

Fork Extension/Retraction Speed: 30–40 m/min;

Horizontal Positioning Accuracy (mm)

±5

±5

±5

Vertical Lifting Positioning Accuracy (mm)

±5

±5

±5

Fork Extension/Reset Accuracy (mm)

±3

±3

±3

Operating Modes

Online Automatic / Standalone Automatic / Manual Operation

Online Automatic / Standalone Automatic / Manual Operation

Online Automatic / Standalone Automatic / Manual Operation

Power Supply

Conductor Rail

Conductor Rail

Conductor Rail

Communication Method

Wireless Ethernet communication / Optical communication

Wireless Ethernet communication / Optical communication

Wireless Ethernet communication / Optical communication

Positioning Method

Laser Ranging Combined with Encoder

Laser Ranging Combined with Encoder

Laser Ranging Combined with Encoder

Fork Structure

Bidirectional Telescopic Fork

Bidirectional Telescopic Fork

Bidirectional Telescopic Fork

Fork Type

Dual Telescopic Forks

Dual Telescopic Forks

Dual Telescopic Forks

Conveyor Rail

Overhead Rail: Angle Steel Rail; Ground Rail: Aluminum Rail

Overhead Rail: Flat Steel; Ground Rail: Steel Rail

Overhead Rail: Flat Steel; Ground Rail: Steel Rail
