Short circuit, overvoltage, overcurrent, overtemperature, and reverse polarity protection.
Universal design: Compatible with various robot needs.
Intuitive light display and convenient screen interaction.
Adaptive battery charging: Automatically adjusts charging current.
Manual and automatic charging modes.
It’s applicable for integration in smart factories, intelligent warehousing, and smart logistics, with charging data synchronized and uploaded to the scheduling system for monitoring. This enables AMRs to autonomously charge 24/7 without human intervention.

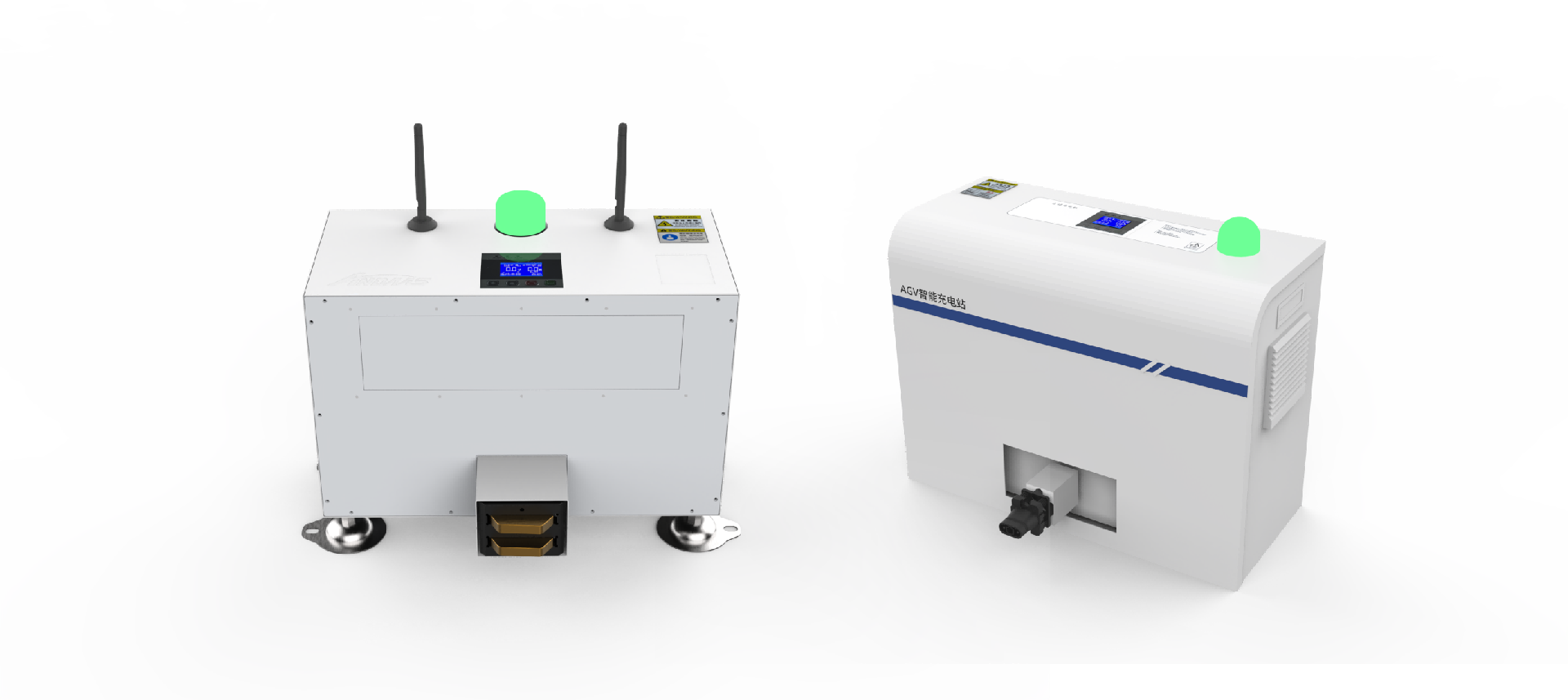

The intelligent charging pile is an automated charging device designed for AMRs, enabling autonomous charging without human intervention through intelligent scheduling and energy management technology.
Model | AD-L300-C |
Input Voltage (V) | AC Voltage: 220V (fluctuation range: 180V–260V |
Input Current (A) | 15 |
Output Power (W) | Rated Output: 2400W (max) |
Voltage Limit (V) | 58.4A (adjustable) |
Max. Load (A) | 40 |
Insulation Strength | Input/Output: 2000V; Input to Housing: 1500V; Output to Housing: 500V |
Safety Standards | Complies with EN60950 requirement |
Leakage Current | ≤20mA |
Cooling Method | Air cooling |
